Features：Application: Suitable for packing powder and small grain, such as milk powder, coffee powder, white sugar, glucose, flour, feed, additive, Washing powder etc.
Application:
Suitable for packing powder and small grain, such as milk powder, coffee powder, white sugar, glucose, flour, feed, additive, Washing powder etc.

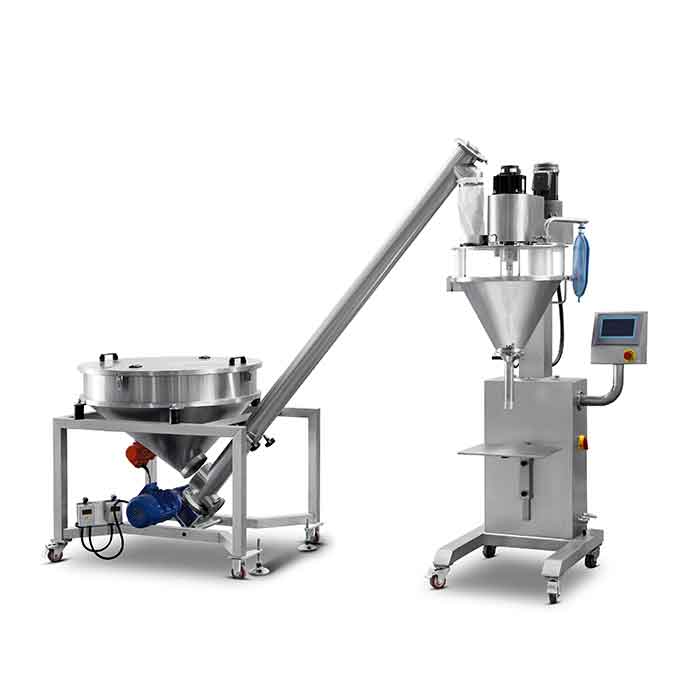

SYX-8 Auger filler Technical Parameters:
|
Filling Weight |
10-5000g |
|
Filling Accuracy |
≤±1% |
|
Filling Rate |
40 - 120 times/min |
|
Power Supply |
3P / 220V-415V 50/60Hz |
|
Total Power |
1.9KW |
|
Total Weight |
300Kg |
|
Hopper Volume |
50L |
JT-6 Auger elevator Technical Parameters:
|
Model |
SYX-6 Auger elevator |
|
Charging Capacity |
3 CBM/hours |
|
Diameter of pipe |
114mm |
|
Hopper Volume |
230L |
|
Power Supply |
3P 220V, 60HZ |
|
Vibration motor |
3 phase |
|
Total Weight |
140 KG |
|
Overall Dimensions of Hopper |
(L)1023mm*(W)823mm*(H)870mm |
|
Remark |
Other charging capacity could be designed |
