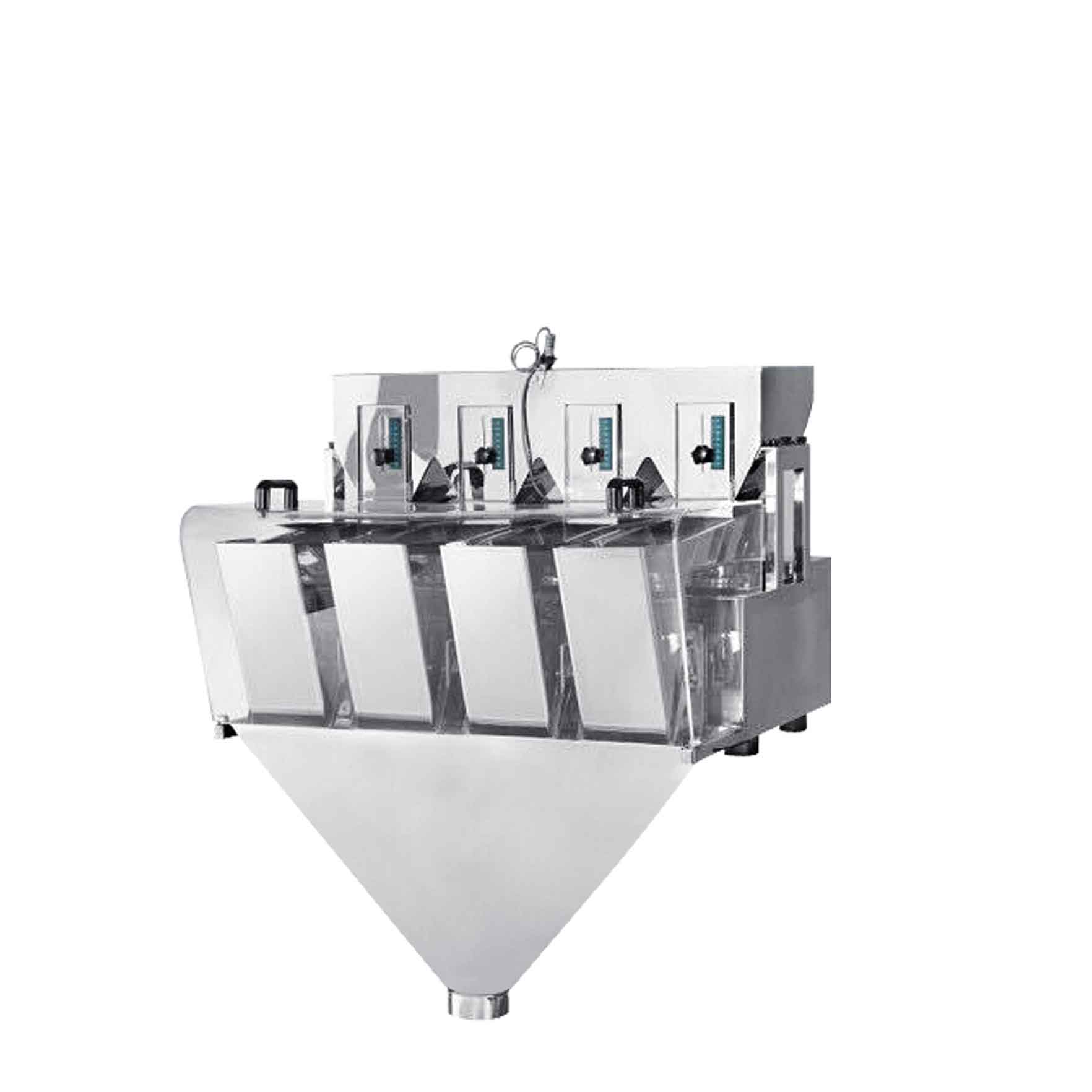

SYX-4 Four heads weigher

SYX-4 Four heads weigher

Features:SYX-4 Four heads weigher

Details





Specifications:



Model

SYX-4

Single Dump Max. (g)

20-1500G

Weighing Accuracy(g)

0.2-2g

Max. Weighing Speed

10-45wpm

Weigh Hopper Volume

3000ml

Control Panel

5.7” LCD Touch Screen (WEINVIEW)

Max. mix-products

4

Power Requirement

220V/50/60HZ  8A/800W

Packing Dimension(mm)

996(L)*1032(W)1032(H)

Gross/Net Weight(kg)

200/180kg







Technical characteristics:



Multihead weigher measuring, packing weight more precision, cost more low.







Application:



It is suitable for granule, like rice, sugar, salt, coffee bean etc.







Special features:



1. Make mix different products weighing at one discharge;

2. Adopt no-grade vibrating feeding system to make products flowing more fluently;

3. Program can be freely adjusted according to production condition;

4. Can be remote-controlled and maintained through internet;

5. Adopt high precision digital load cell;

6. Stable PLC system control;

7. Color touch screen with Multilanguage control panel;

8. Sanitation with 304﹟S/S construction

9. The parts contacted products can be easily mounted without tools;

10. IP65 construction.
