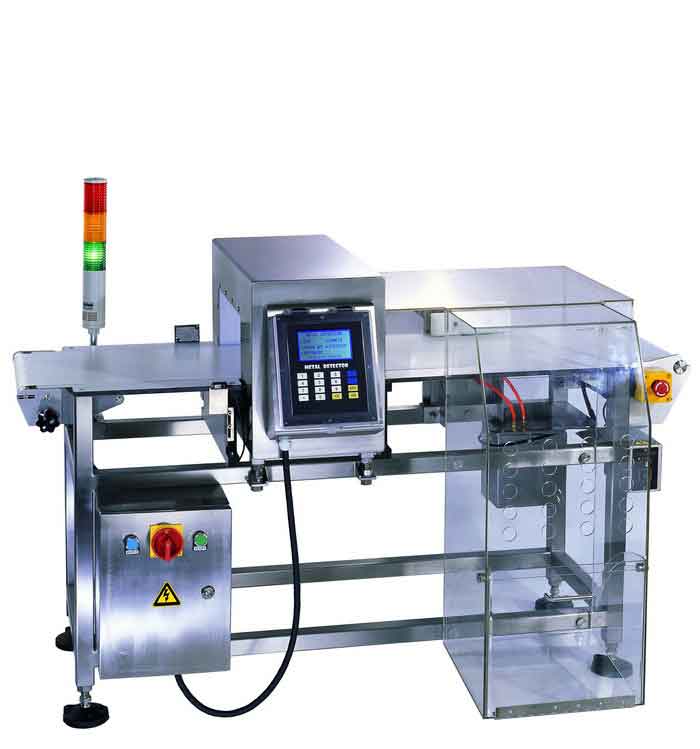

Features：SYX-7-II Metal detector
Technical parameters:
|
Detection method |
Detection method |
|
Detection height |
130mm |
|
Detection width |
280mm |
|
Detection ability |
(350x175mm for protal,central position of conveying belt) Fe￠8mm/SUS￠2.0mm |
|
Belt speed |
0-40m/min |
|
Power source |
220VAC±10%/50/60Hz |
|
Rated output |
90W±10% |
|
Alarm methed |
Flash alarm |
|
Dimension |
1550(L)×850(W)×1150(H)mm |
|
Net weight |
About 115Kg |
Note: the Inspection Precision above is in the ideal conditions.The real performace is to some factor,such as product’s property,
the position of the metal in product …etc.
Note: The test precision will be different upon probes of different size.
