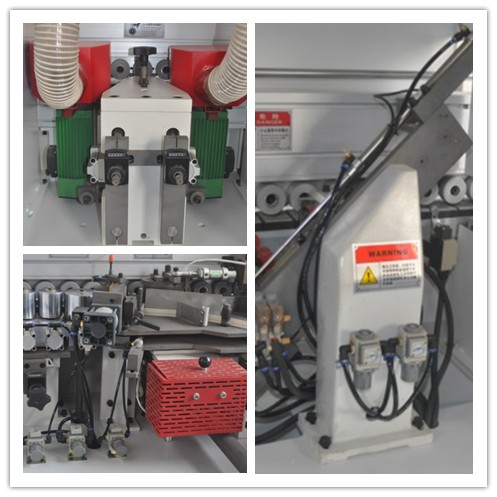

Pre-milling equipment with double trimming blades works on the waved effect that is caused by precise sliding table saw.
The glue mechanism adopts a special structure to gelatinize the plates and costing materials uniformly, ensure a more solid conglutination.

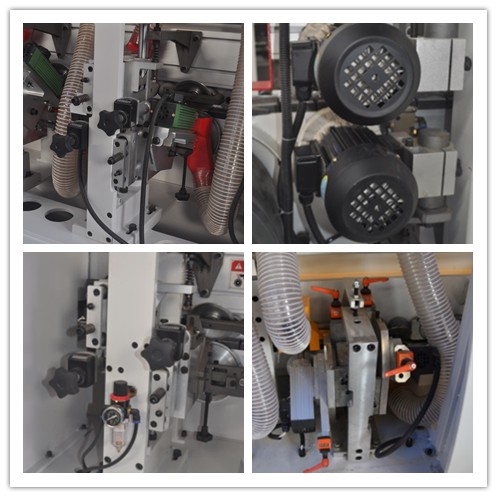

End trimming mechanism through a precise guide track movement; adopt automatic tracking and high frequency motor fast cutting structure to ensure the cutting surface smoothly.
Rough/fine trimming mechanism is used for repairing the excess edge materials, adopt automatic tracking and high frequency motor fast cutting structure to ensure the trimming plates smoothly.
Scraping unit is for a perfect finishing of the applied edge.
The buffing device adopts the board processed by cotton polishing wheel, by end polishing to make a smoother surface.
|

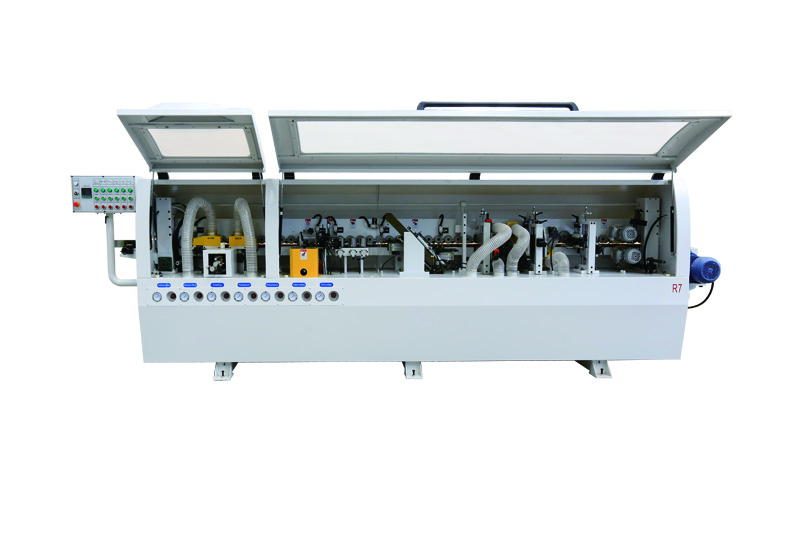

Type |
R7A |
|
Banding tape thickness |
0.4-3 mm |
|
Banding tape width |
10-60 mm |
|
Work piece thickness |
10-60 mm |
|
Work piece length |
>=100 mm |
|
Work piece width |
>=50 mm |
|
Heating power |
1.5 KW |
|
Feeding motor power |
2.2 KW |
|
Glue spreading power |
0.37 KW |
|
Rough trimming power |
0.75 KW x 2 |
|
End trimming power |
0.55 KW x 2 |
|
Fine trimming power |
0.75 KW x 2 |
|
Polishing motor power |
0.18 KW x 2 |
|
Feeding speed |
13 m/min |
|
Air pressure |
0.7 Mpa |
|
Total Power |
10.63 KW |
|
Overall dimension |
4940x900x1500 mm |
|
Packing size |
5000x1000x1600 mm |
|
N.W. |
1600 KGS |
|
G.W. |
1870 KGS |
