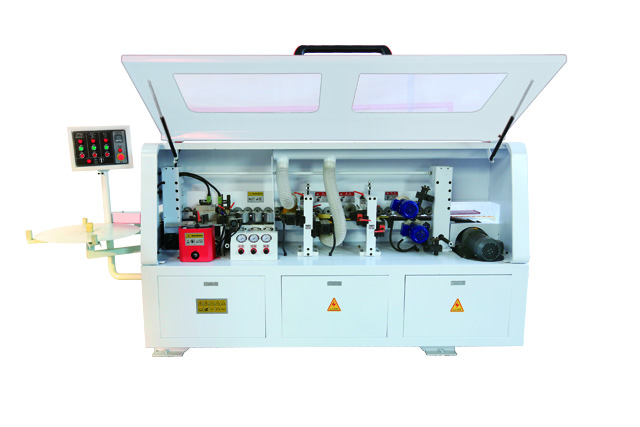

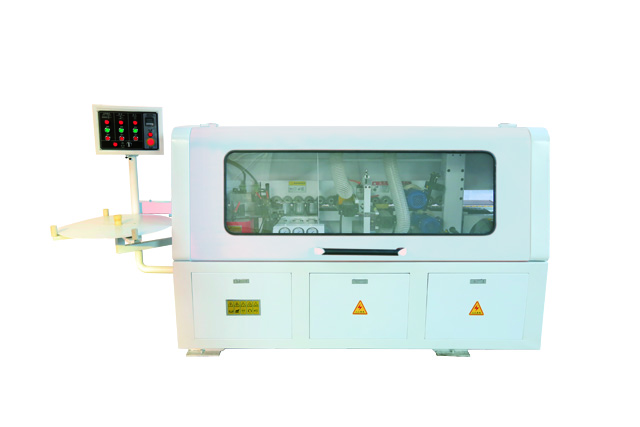

R3A Automatic Edge Banding Machine

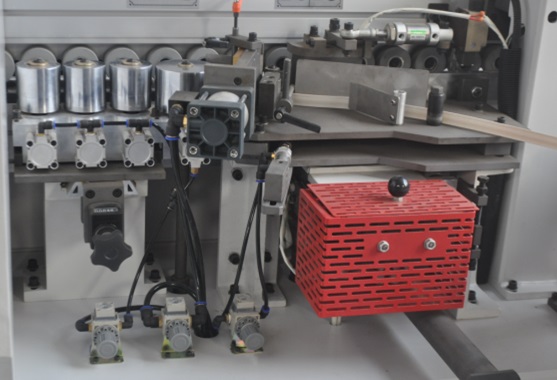

The glue mechanism adopts a special structure to gelatinize the plates and costing materials uniformly, ensure a more solid conglutination.

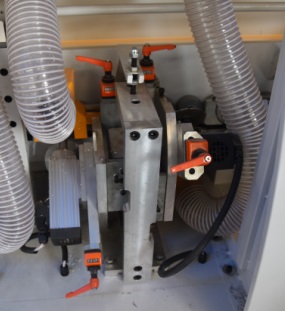

Fine trimming mechanism is used for repairing the excess edge materials, adopt automatic tracking and high frequency motor fast cutting structure to ensure the trimming plates smoothly.

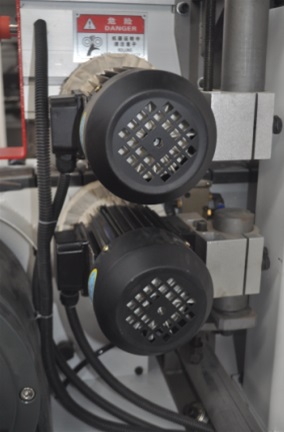

The buffing device adopts the board processed by cotton polishing wheel, by end polishing to make a smoother surface.
|
Type |
R3A |
|
Banding tape thickness |
0.4-3 mm |
|
Banding tape width |
10-60 mm |
|
Work piece thickness |
10-60 mm |
|
Work piece length |
>=100 mm |
|
Heating power |
0.75 KW |
|
Feeding motor power |
0.75 KW |
|
Glue spreading power |
0.37 KW |
|
Fine trimming power |
0.75 KW x 2 |
|
Polishing motor power |
0.18 KW x 2 |
|
Feeding speed |
13 m/min |
|
Air pressure |
0.7 Mpa |
|
Machine size |
2930*830*1460mm |
